| Specifications | |
|---|---|
| Mains Measurements | 1 Phase/ 3 Phase Voltage, 1 Phase/ 3 Phase Current, Frequency, PF, KW, KVA,KVAR, KWH, KVAh |
| Generator Measurements | 1 Phase / 3 Phase Voltage, 1 Phase / 3 Phase Current, Canopy Fan Current, Frequency, PF, KW, KVA,KVAR, KWH, KVAh, Battery Voltage, Water Temperature, Oil Pressure, Fuel Level( Both in percentage and Litre), RPM, Run Hour, Service Due Hour |
| Protection / Supervision Mains | Under/Over Voltage, Under/Over Frequency, Phase Sequence, Voltage Unbalance, Overload. |
| Protection / Supervision DG | Under/Over Voltage, Under/Over Frequency, Current Unbalance, Over Speed, Overload, RWL, LLOP, HWT, LFL, Charging Alternator/V-belt, Emergency off, Service Due, Fail To Start(only when configured as AMF controllers). Fail To Stop(only when configured as AMF controllers) |
| Communication | USB, Fully Isolated RS485(Optional), CAN J1939 |
| Operating modes of AMF | Manual Mode, Semi-Auto Mode, Auto Mode, Test Mode |

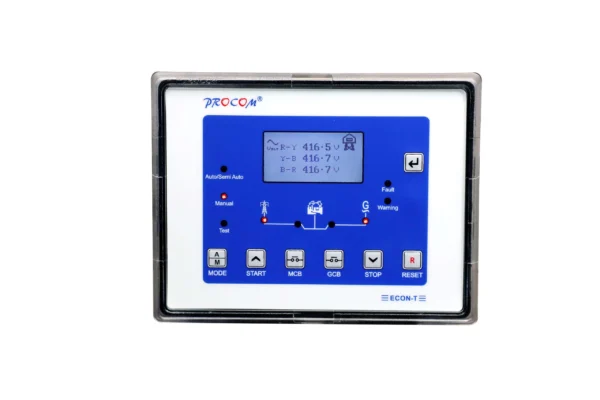

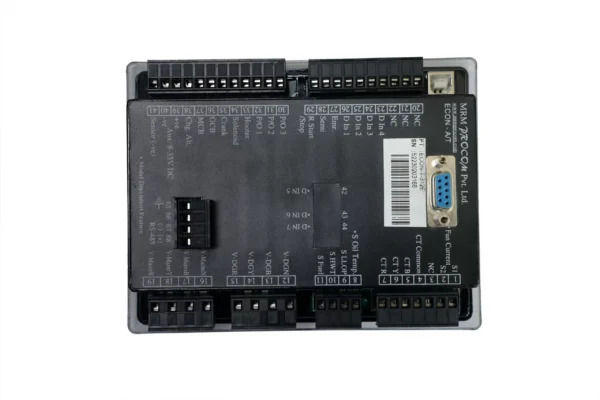

Procom Controller (Model: ECON-T-312E)
ECON is a universal controller for DG Set which can be configured as both automatic or manual controller. LCD Display, USB, RS232, RS485 communication. Three Phase Mains Three Phase DG, Three Phase Mains Single Phase DG, Single Phase Mains Single Phase DG.
